Anti-Tilt Safety Cut-Off
Automatically prevents unsafe tilting of the platform.
SB Series Suspended platform is mainly composed of suspension mechanism, suspension platform, hoist (mechanicaly operated with motors), safety lock, electric control system, work wire rope, safety wire rope and so on as below with two Suspension Points.
Wingspan comes equipped with a variety of advanced safety and functional features, ensuring a seamless experience for operators and workers:
Automatically prevents unsafe tilting of the platform.
Ensures the platform doesn’t exceed safe height limits.
A durable locking system for added security
Allows easy movement and placement of the platform against structures.
Reduces unwanted swaying during operation, enhancing stability.
Accurately measures load weight to prevent overloading
Provides an emergency locking system for enhanced safety.
Prevents damage to the hoist by stopping the platform if the cable jams.
Enables convenient access to electricity for tools and equipment.
Centralized control panel for smooth operations.
GI Anti-skid Platforms - adaptable compartments to suit various project needs.
|
Model Type WS-800 |
|
||
|
Rated Load |
800 kg |
||
|
Lifting Speed |
9 m/min |
||
|
Max Lifting Height |
250 Meter |
||
|
Dimension of Platform (L*W*H) |
(2.5m x 2 +1m+1.5m) x0.69m |
||
|
Suspension Mechanism |
Front beam overhang |
1.1 ~1.7 m |
|
|
Adjustable Height |
1.15~1.75 m |
||
|
Hoist |
Model |
LTD 80 |
|
|
Lifting Force |
8 KN |
||
|
Motor |
Power |
1.8 KW |
|
|
Voltage |
415 V, 50 HZ, 3 phase |
||
|
Rotation Speed |
1400 R/Min |
||
|
Brake Torque |
15.2 Nm |
||
|
Safety lock |
Type |
Tilt proof safety lock |
|
|
Locking cable angle |
3-8 degree |
||
|
Allowable impulsive force |
20 KN |
||
|
Weight |
Suspension platform including hoist, safety lock, electric control panel. |
540kg |
|
|
Suspension mechanism |
400 kg |
||
|
Counterweight |
1000 kg |
||
|
Whole machine weight without steel wire rope & power cable |
1885 kg |
||
|
Wire Rope |
Type |
4X31SW+FC-9.1 |
|
|
Platform type |
|
Hot Dip Galvanized |
|
Wingspan stands out in the industry due to its modular design and user-friendly features. Here's why it's the preferred choice for construction and industrial work:
Modular DesignThe platform is available in sizes ranging from 1.5 to 7.5 meters, making it easy to assemble, dismantle, operate, and maintain. This flexibility ensures that it can be customized to meet different project needs.
Ease of MovementThe platform is equipped with wheels, making it simple to transport and reposition on-site.
Time-Saving & Cost-EffectiveWingspan reduces labour costs and speeds up project timelines, offering a practical and economical solution for high-rise work.
Adjustable Lifting HeightThe platform's lifting height can be adjusted to match specific project requirements, providing versatility for various tasks.
Customized Platform ShapesWingspan can be tailored to different structures with customized shapes and roofing options, enhancing adaptability across projects.
Wingspan's versatility makes it an excellent choice for a wide range of applications across different industries. Here are some of the common uses:

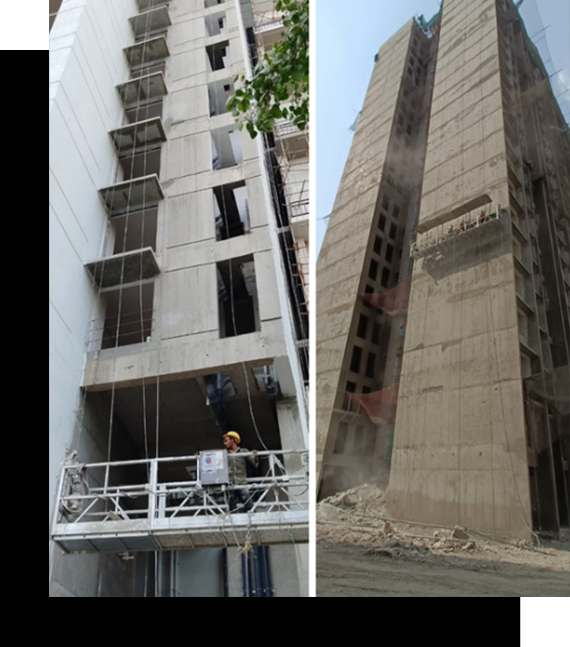

Perfect for plastering, painting, and finishing work on external walls of tall buildings.
Ideal for installing and cleaning curtain walls and facades.
Suitable for installing aluminium fins on modern building exteriors.
Useful for grinding, texture painting, tile fixing, and other structural repairs.
Provides a safe platform for working on towers, bridges, dams, and chimneys.
Wingspan offers a range of customizable configurations to meet the unique needs of your project:
Perfect for working on building corners or angular structures.
Ideal for wrapping around structures that require access on multiple sides.
We can tailor the platform to suit specific architectural designs or challenging project demands.
For complex structures: Parapet Brackets, wall brackets & davits.

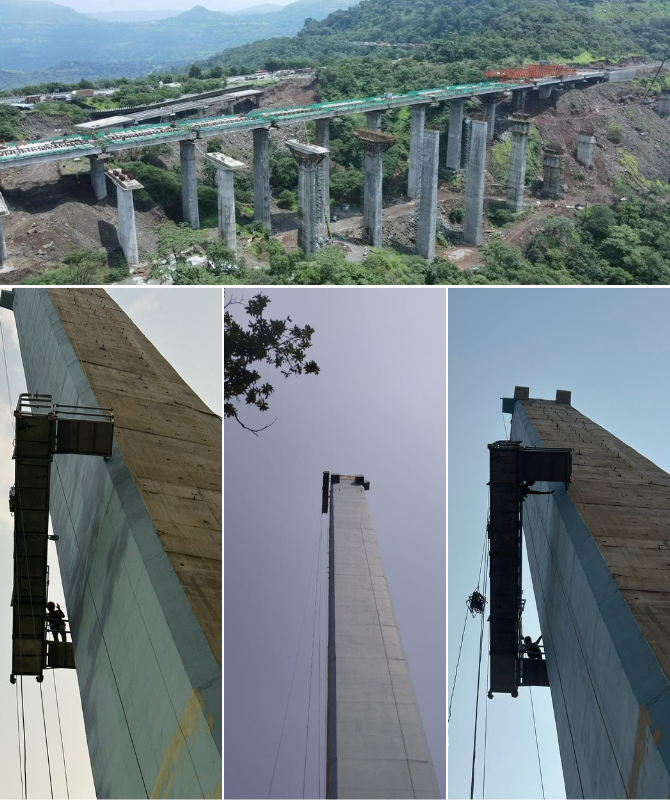

SB Scaffolding Pvt Ltd was selected to contribute to the "Missing Link" project on the Mumbai Pune Expressway, an ambitious initiative commissioned by MSRDC and executed by Afcons. This project aimed to enhance connectivity between Mumbai and Pune, a critical infrastructure upgrade that promises to drive significant economic growth in the region.
The project required surface treatment on the towering pylons, with the pier standing approximately 80 meters tall and the pylon reaching a remarkable 130 meters. Accessing these elevations safely and efficiently posed a significant challenge. The project site was further complicated by deep trenches and hard-to-reach areas on the structure's sides, demanding a highly customized and reliable access solution.
SB Scaffolding deployed its flagship product, the Wingspan - Rope Suspended Platform, to meet these challenges. This advanced platform provided a secure and stable elevated work environment, essential for workers performing surface treatment at extraordinary heights.
The deployment of the Wingspan - Rope Suspended Platform was instrumental in the successful completion of the surface treatment on the towering pylons of the "Missing Link" project. By enabling safe and efficient access to challenging areas, SB Scaffolding played a vital role in the progress of this nation-building initiative. The "Missing Link" project, once completed, will significantly improve connectivity between Mumbai and Pune, creating new economic opportunities and benefiting the region as a whole.
