H-Shaped Frames
The system utilizes vertical and horizontal frames shaped like the letter “H,” providing a stable and self-supporting structure.

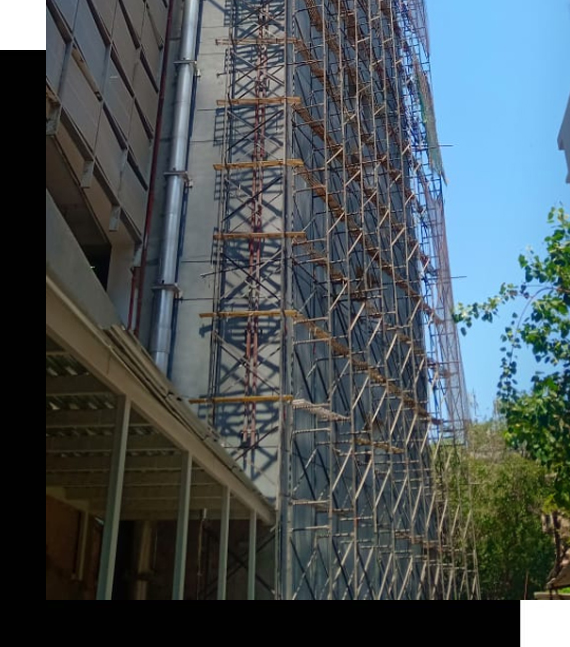

The H Frame System is a widely used Scafform system in construction and maintenance projects. Known for its stability and robust structure, this system features pre-fabricated H-shaped frames that provide reliable support for work platforms. The H Frame System is celebrated for its straightforward assembly and dependable performance, making it a preferred choice for both small and large-scale projects.
The system utilizes vertical and horizontal frames shaped like the letter “H,” providing a stable and self-supporting structure.
Components are modular, allowing for easy configuration and customization based on project needs.
The system includes adjustable features such as base jacks and adjustable ledgers to accommodate uneven ground and different working heights.
Frames are designed to interlock securely with each other, enhancing stability and preventing movement.
Suitable for a wide range of applications, including both vertical and horizontal access.
Frames and components are designed for quick assembly and disassembly, reducing setup time and labour costs.
|
ITEM CODE |
SIZE (MM) |
WEIGHT (KG) |
|
PAINTED |
||
|
MSHF2000X1000L |
2000 x 1000 |
23.00 |
|
ITEM CODE |
SIZE (MM) |
WEIGHT (KG) |
|
PAINTED |
||
|
MSHF2000X1000 |
2000 x 1000 |
20.00 |
|
ITEM CODE |
SIZE (Mtr) |
WEIGHT (KG) |
|
PAINTED |
||
|
MSCB2 |
2 mtr |
6.50 |
|
MSCB2.5 |
2.5 mtr |
7.50 |
|
ITEM CODE |
SIZE (MM) |
WEIGHT (KG) |
|
PAINTED |
||
|
GIPL1500X225X38X1.6H |
1500x225 |
8.50 |
|
GIPL2000X225X38X1.6H |
2000x225 |
11.50 |
|
GIPL2500X225X38X1.6H |
2500x225 |
14.00 |
|
ITEM CODE |
SIZE (MM) |
WEIGHT (KG) |
|
PAINTED |
||
|
MSPL1500X225X38X1.6 |
1500x225 |
7.00 |
|
MSPL2000X225X38X1.6WT |
2000x225 |
10.00 |
|
MSPL2500X225X38X1.6H |
2500x225 |
12.50 |
|
ITEM CODE |
SIZE (MM) |
WEIGHT (KG) |
|
PAINTED |
||
|
MSJL8FTX1FT |
2400x300 |
16.00 |
|
MSJL3000X300X1.6 |
3000x300 |
19.50 |
Enhanced Stability The H-shaped frames provide a stable and rigid structure, reducing the risk of scaffold collapse and ensuring safety for workers.
Ease of UseThe straightforward design allows for fast and efficient assembly and disassembly, which can lower labour costs and construction time
Flexibility The modular design enables easy adjustments and configuration to fit various project requirements and site conditions.
Cost-Effective Reduces the need for extensive inventory and specialized components, leading to lower overall costs.

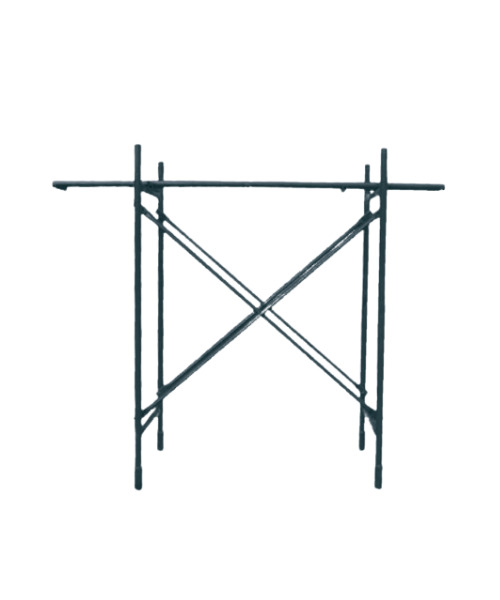

The main structural components, featuring vertical posts and horizontal crossbars arranged in an “H” shape. These frames form the backbone of the scaffold system.

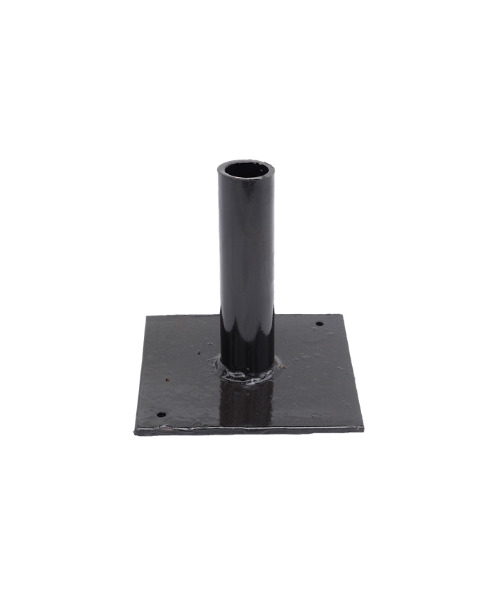

Placed at the bottom of the frames to distribute the load evenly and provide stability on uneven surfaces.

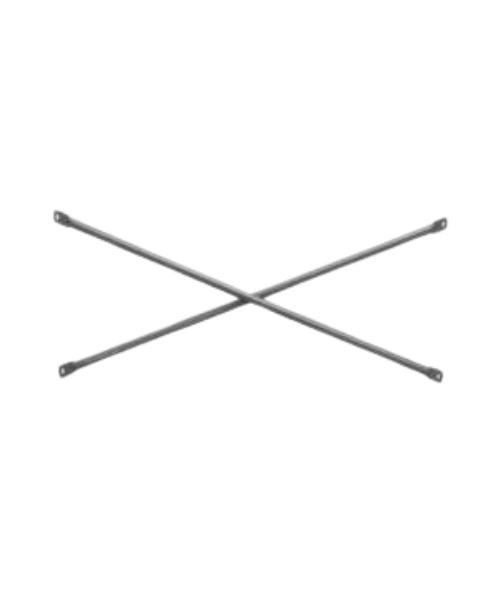

Diagonal components that add rigidity to the scaffold, preventing swaying or buckling and enhancing overall stability.
Platform boards or decking that provide a working surface. These can be made of wood, metal, or composite materials.

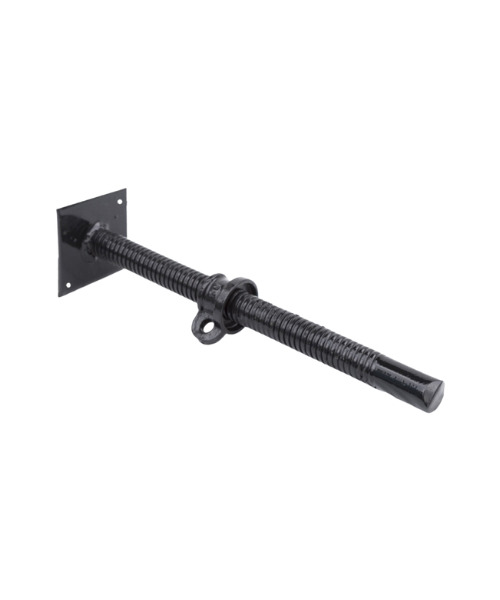

Used to adjust the height of the frames and ensure the scaffold is level, especially on uneven ground.
Suitable for use in both residential and commercial construction projects, including high-rise buildings and low-rise structures.
Ideal for accessing and working on existing structures, such as buildings, bridges, and industrial equipment.
Provides support for formwork in concrete construction, ensuring proper alignment and stability during the curing process.
Used for maintenance, inspection, and access in industrial settings, including factories and warehouses.
Can be used to construct temporary stages, viewing platforms, and other structures for events and performances.
The H Frame System’s simplicity, stability, and versatility make it a reliable choice for a wide range of Scafform needs.
