Adjustable Height
The props feature telescopic sections that enable easy height adjustments, making them versatile for supporting various heights and configurations.
The Prop System, also known as adjustable props or shoring props, is a versatile Scaffolding solution designed to provide temporary support to structural elements during construction or renovation. This system is ideal for supporting formwork, slabs, beams, and other structural components until the concrete or construction material has fully cured and can independently bear the load. The Prop System is highly adjustable, allowing for precise height modifications to accommodate varying site conditions and construction requirements.
The props feature telescopic sections that enable easy height adjustments, making them versatile for supporting various heights and configurations.
Engineered to support significant loads, making them suitable for heavy-duty applications such as supporting concrete slabs and beams.
Typically made from high-strength steel, ensuring durability and resistance to heavy loads and harsh environmental conditions.
The simple design and operation facilitate quick adjustment and installation, reducing setup time and labour costs.
Includes locking mechanisms to secure the prop in place, preventing accidental collapse or movement.
Can be used in conjunction with other Scaffolding components and systems, allowing for flexible and customizable setups.
|
ITEM CODE |
SIZE (MM) |
WEIGHT (KG) |
|
PAINTED |
||
|
MSPRB1.5X1.5SL |
1500x1500 |
11.20 |
|
MSPRB2X2SL |
2000x2000 |
14.10 |
|
MSPRB2X2.5SL |
2000x2500 |
15.60 |
|
MSPRB2X3SL |
2000x3000 |
17.10 |
|
ITEM CODE |
SIZE (MM) |
WEIGHT (KG) |
|
PAINTED |
||
|
MSPRB1.5X1.5S |
1500x1500 |
14.50 |
|
MSPRB2X2S |
2000x2000 |
18.50 |
|
MSPRB2X2.5P |
2000x2500 |
20.00 |
|
MSPRB2X3P |
2000x3000 |
22.00 |
|
MSPRB3X3S |
3000x3000 |
26.50 |
|
ITEM CODE |
SIZE (MM) |
WEIGHT (KG) |
|
PAINTED |
||
|
MSPRB1.5X1.5SH |
1500x1500 |
15.90 |
|
MSPRB2X2SH |
2000x2000 |
20.10 |
|
MSPRB2X2.5SH |
2000x2500 |
21.90 |
|
MSPRB2X3SH |
2000x3000 |
23.70 |
|
MSPRB3X3SH |
3000x3000 |
28.70 |
|
MSPRB1.5X1.5SEH |
1500x1500 |
18.00 |
|
MSPRB2X2SEH |
2000x2000 |
23.00 |
|
MSPRB2X2.5SEH |
2000x2500 |
25.20 |
|
MSPRB2X3SEH |
2000x3000 |
27.40 |
|
MSPRB3X3SEH |
3000x3000 |
33.00 |
Versatility Suitable for a wide range of applications, from supporting formwork in concrete construction to stabilizing temporary structures.
EfficiencyQuick and easy to set up and adjust, speeding up the construction process and reducing labour time.
Cost-EffectivenessDurable and reusable, which can lower overall costs by reducing the need for frequent replacements and minimizing waste.
SafetyProvides stable and reliable support for structural elements, reducing the risk of collapse or instability during construction.
FlexibilityAdjustable height and modular design make it adaptable to different construction needs and site conditions.

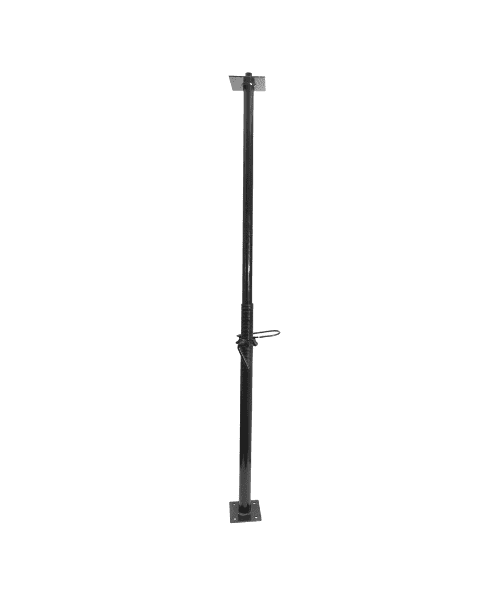

The main vertical components of the system, featuring telescopic tubes that can be adjusted to different heights. They typically consist of an outer tube and an inner tube, with a mechanism for extending and locking the inner tube.

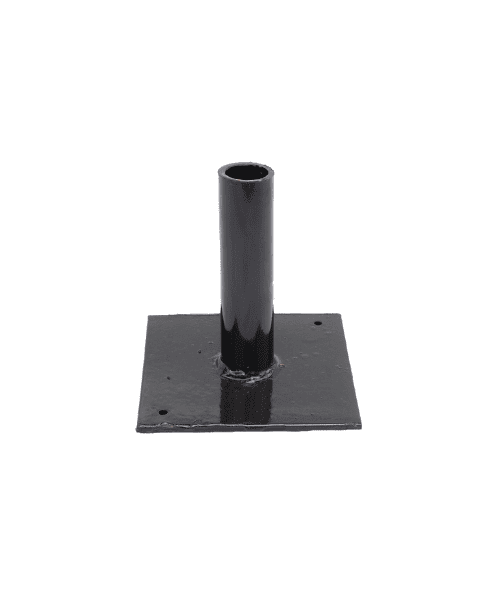

Plates placed at the bottom of the props to distribute the load evenly and provide stability on uneven surfaces.

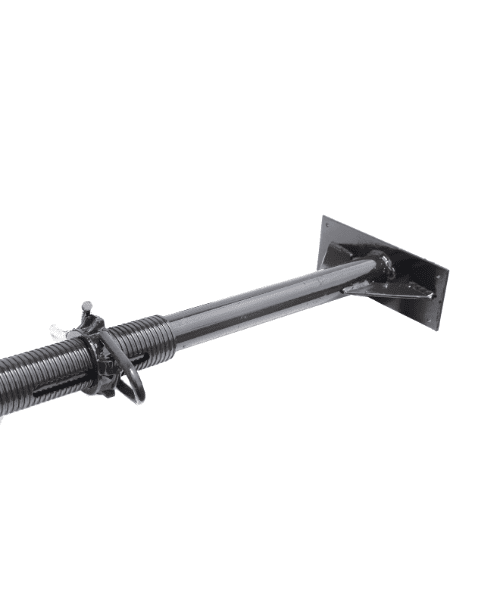

The component at the top of the prop that makes contact with the formwork or structural element being supported. It often includes a mechanism for fine adjustments.

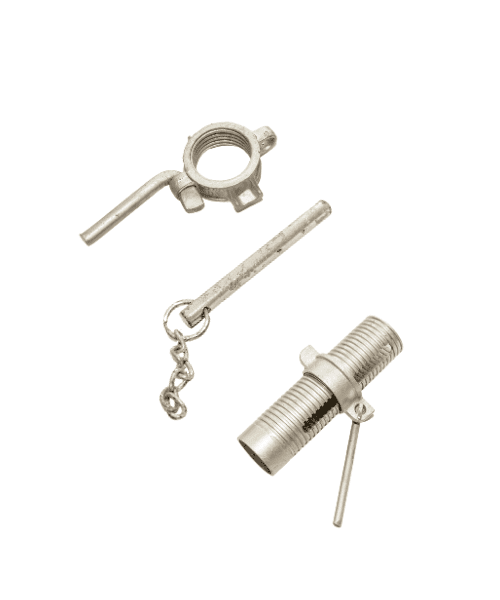

Devices that secure the telescopic sections of the prop in place to prevent accidental movement. Common types include pin-and-hole systems, screw threads, or clamps.
Additional sections that can be added to increase the height range of the prop, allowing for greater flexibility in supporting different heights.

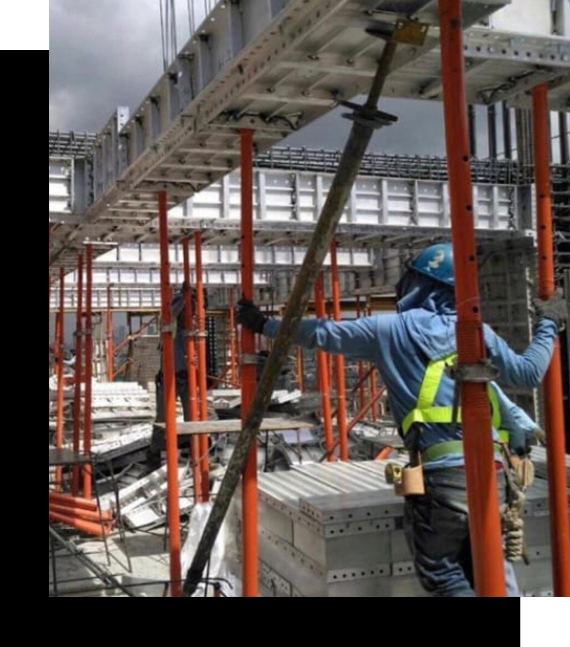

Used to support formwork for concrete slabs, beams, and walls until the concrete sets and gains sufficient strength.
Provides temporary support for structural elements during renovations, repairs, or construction of new buildings.
Used to stabilize and support temporary structures or elements that need additional support during construction or modification.
Applied in industrial settings to support and stabilize components or structures during maintenance or repair work.
The Prop System’s ability to provide reliable and adjustable support makes it an essential component in Scaffolding and construction, ensuring safety and efficiency in various applications.
