Cup-and-Cone Locking Mechanism
The Cuplock System features a distinctive cup-and-cone locking mechanism, allowing for quick and secure connections between components. This system ensures both vertical and horizontal stability.
The Cuplock System is a highly popular and versatile modular scaffolding system widely used in construction and industrial applications. Known for its efficiency, safety, and ease of assembly, this system employs a unique locking mechanism that simplifies the assembly process, ensuring a secure and stable scaffold structure. The Cuplock System comprises vertical standards, horizontal ledgers, and diagonal braces, all interconnected through a cup-and-cone locking system.
The Cuplock System features a distinctive cup-and-cone locking mechanism, allowing for quick and secure connections between components. This system ensures both vertical and horizontal stability.
Highly modular, the Cuplock System includes interchangeable components that can be configured to meet various construction needs.
Suitable for both temporary and permanent applications, including access scaffolding, formwork support, and shoring.
The system allows for height and width adjustments, accommodating different building heights and site requirements.
Made from high-strength steel, the components offer durability and resistance to heavy loads and harsh environmental conditions.
The design facilitates faster assembly and disassembly compared to traditional scaffolding systems, reducing labour time and costs.
Made from 48.3mm diameter x 3mm thick high grade mild steel tube, SB Lock System Standards (Vertical) are formed by two cups a fixed bottom cup which is welded to the Standard (Vertical) at pre-located intervals i.e. 500mm and sliding top cup. The forged blade ends of the Ledger (Horizontal) are located into the bottom cup. The top cup is moved down and rotated to secure the components in place and tightened by a hammer blow to give a positive and rigid connection.
|
ITEM CODE |
SIZE (MM) |
WEIGHT (KG) |
|
PAINTED |
||
|
MSV500 |
500 |
2.50 |
|
MSV1000WS |
1000 |
4.50 |
|
MSV1500S |
1500 |
6.75 |
|
MSV2000S |
2000 |
9.00 |
|
MSV2500S |
2500 |
11.20 |
|
MSV3000S |
3000 |
13.40 |
|
ITEM CODE |
|
SIZE (MM) |
WEIGHT (KG) |
|
|
PAINTED |
||
|
MSL500BS |
|
500 |
2.00 |
|
MSL900BS |
|
900 |
3.30 |
|
MSL1000BS |
|
1000 |
3.60 |
|
MSL1200BS |
|
1200 |
4.30 |
|
MSL1500BS |
|
1500 |
5.30 |
|
MSL1800BS |
|
1800 |
6.30 |
|
MSL2000BS |
|
2000 |
7.00 |
SB make Vertical with Socket Made from 48.3mm diameter x 3mm thick high grade mild steel tube, SB Lock System Standards (Vertical) are formed by two cups a fixed bottom cup which is welded to the Standard (Vertical) at pre-located intervals i.e. 500mm and sliding top cup. This vertical will not require any extra spigot for the connection.
|
ITEM CODE |
SIZE (MM) |
WEIGHT (KG) |
|
PAINTED |
||
|
MSV500ST |
500 |
3.00 |
|
MSV1000ST |
1000 |
5.10 |
|
MSV1500WS |
1500 |
7.20 |
|
MSV2000ST |
2000 |
9.60 |
|
MSV2500ST |
2500 |
12.00 |
|
MSV3000ST |
3000 |
14.00 |
Enhanced Safety: The secure locking mechanism and stable structure minimize the risk of collapse or instability, enhancing safety
Increased EfficiencyQuick assembly and disassembly reduce construction time and labour costs, making the system cost-effective.
Reduced Inventory NeedsInterchangeable parts reduce the need for a large inventory of different scaffold components, simplifying logistics and storage
FlexibilityThe modular nature allows for customization to fit various project requirements, including complex and high-rise structures.
High Load CapacitySupports heavy loads, making it suitable for demanding applications and ensuring the integrity of the scaffolding structure.

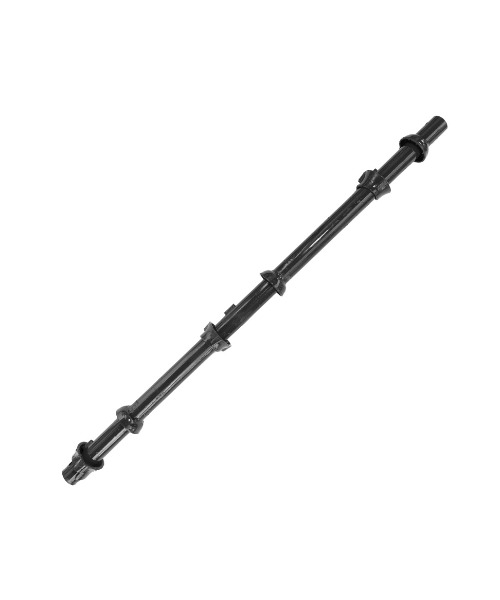

Vertical components that provide support for the entire scaffold structure. They are equipped with cups at regular intervals of 500 mm.

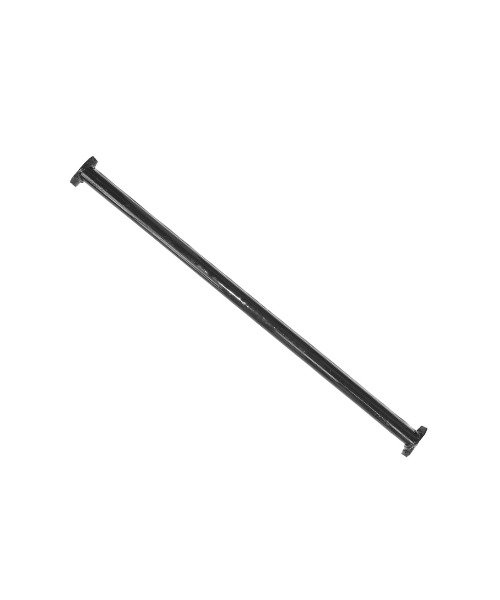

Horizontal components that connect between standards, providing lateral stability and support for decking.
Diagonal components that add rigidity to the scaffold, preventing swaying or buckling.
Platforms or decking are used to create a working surface on the scaffold, and they are available in wooden or metal options.

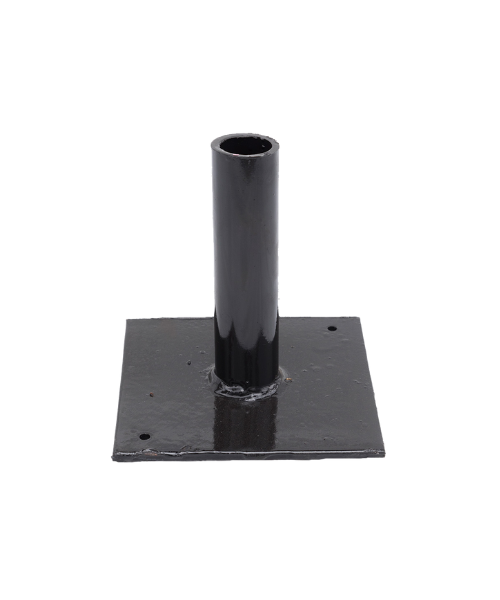

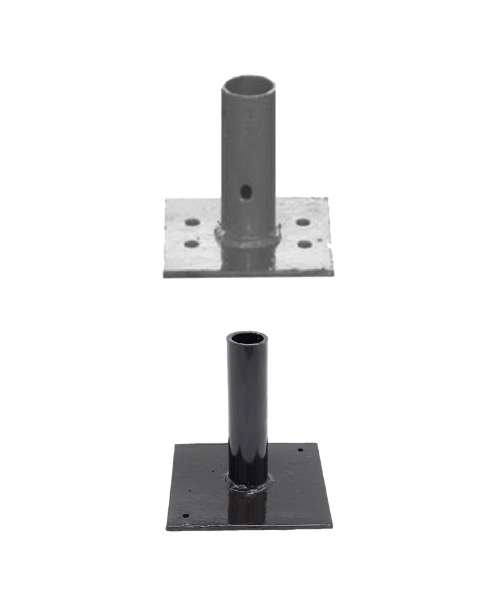

Plates at the bottom of the standards to distribute the load evenly and provide stability on uneven ground.

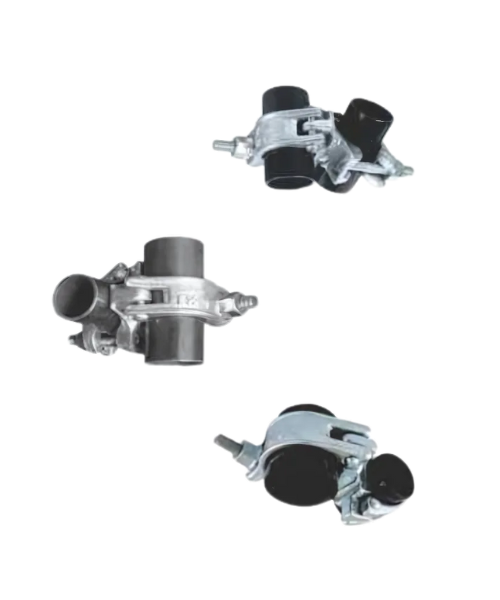

Used to secure the ledgers and braces to the standards, ensuring all components are tightly locked in place.
Ideal for building and maintaining structures, including high-rise buildings, bridges, and industrial plants.
Useful for accessing and repairing tall structures or equipment.
Provides support for formwork in concrete construction, ensuring proper alignment and stability.
Offers support for temporary structures and load-bearing during construction activities.
Suitable for constructing stages, viewing platforms, and other temporary structures for events and performances.
The Cuplock System’s combination of safety, efficiency, and versatility makes it a preferred choice in various scaffolding applications.
